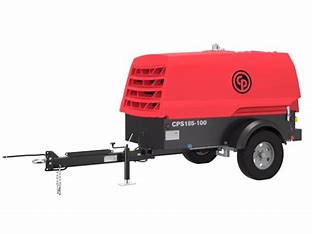

AIR COMPRESSOR, 185CFM TOW BEHIND
Actual free air delivery 1 (FAD) cfm 189 Normal effective working pressure Psi 100 Maximum unloading pressure Psi 125 Minimum working pressure Psi 58 Max. sound pressure level @ 23’ (7m) at normal working speed & pressure2 dB(a) 76 Compression Stages 1 Air Receiver Capacity US Gal (L) 4.76 (18.0) Compressor oil capacity US Gal (L) 2.5 (9.7) Approximate air outlet temperature °F (°C) 200 (93) Air Compressor outlets 2 x ¾” Max. ambient temperature (at sea level)3 °F (°C) 122 (50) Maximum altitude ft (m) 9842 (3000) Minimum starting temperature (without cold weather options) °F (°C) 14 (-10) Minimum starting temperature (with cold weather options) °F (°C) -13 (-25) Engine Kubota D1803-T Emissions Regulation US EPA Tier 4 Final US EPA Engine Family KKBXL01.8EMD Output at rated speed (2700 rpm) 4 HP 49,6 Number of cylinders 3 Aspiration Turbocharged Displacement cu in (L) 111.4 (1.82) Engine speed (Unloaded) rpm 1800 Engine speed (Maximum loaded) rpm 2900 Engine oil capacity US Gal (L) 1.62 (6.1) Engine coolant capacity US Gal (L) 2.6 (9.9) Fuel tank capacity US Gal (L) 27 (102) Fuel consumption at 100% load Gal/Hr (L/Hr) 2.37 (8.97) Fuel consumption at 75% load Gal/Hr (L/Hr) 2.15 (8.14) Fuel consumption at 50% load Gal/Hr (L/Hr) 1.69 (6.40) Fuel consumption at 25% load Gal/Hr (L/Hr) 1.35 (5.11) Fuel consumption at 0% load Gal/Hr (L/Hr) 1.13 (4.28) Electrical System (Negative Ground) V 12 Battery Capacity (Cold Cranking Amps5) A 725
