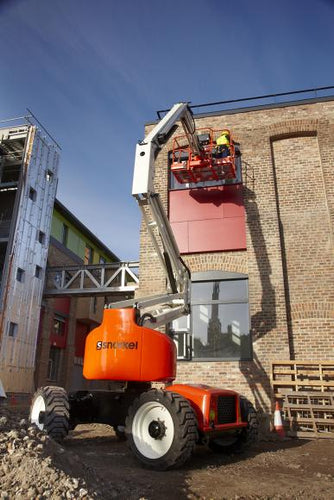

Aerial Articulating Snorkel A46JRT 4x4
Max. working height
52 ft 11 in
Max. platform height
46 ft 11 in
Max. horizontal reach
24 ft 11 in
Clearance height at max. outreach
25 ft 2 in
Platform size
39 in x 72 in
Chassis width
6 ft 10 in
Overall length
18 ft 8 in
Stowed height
7 ft 2 in
Ground clearance
13 in
Platform capacity (SWL)
500 lbs
Max. drive height
46 ft 11 in
Max. wind speed
28 mph
Max. drive speed (elevated)
0.8 mph
Max. drive speed (stowed)
4.25 mph
Raise / lower time
101 / 98 seconds
Gradeability
45%
Jib length
5 ft
Jib arc
140°
Platform rotation
160°
Superstructure rotation
360° non-continuous
Tailswing
0 in
Inside turning radius
2 ft 8 in
Outside turning radius
10 ft 5 in
Tires
Foam filled lug 355/55D625
Controls
Proportional
Drive system
4 wheel drive
Power source
Kubota V1505 24.9hp diesel – Tier 4 Final
Weight
16,620 lbs
